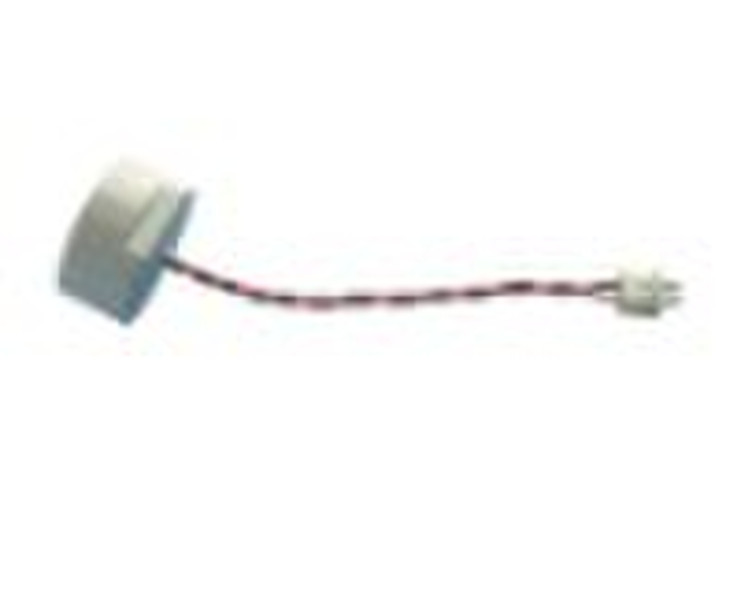

Sensor
original price: 1,00 USD
zorro zhang
Contact person
Basic Information
| Place of Origin | Sichuan China (Mainland) |
|---|---|
| Type | Other |
I. The Ultrasonic Sensor Applications: 1. Ultrasonic distance measuring 2. Ultrasonic transmitting and receiving for the against and natural calamities against equipments II. Characteristics: 1. High sensitivity, high reliability, high stability. 2. High and low temperature resistance, humidity resistance, shock resistance, vibration resistance, etc III. Certificates: ISO9001:2000/TS16949/RoHS. IV. Specifications : Nominal Frequency ( kHz ) 40±1Capacity ( pf ) 2000±15%Ring Time ( ms ) ≤1.2Sound Pressure Level ( db ) 105±5Sensitivity ( db ) -73±5Resistance ( Ω ) 500Directivity ( ° ) 110×70Max.Input Voltage (Vp-p ) 150Operating Temp.Range ( °c ) -30±80Storage Temp. ( °c ) -40±85Weight ( g ) 3.1
Delivery terms and packaging
Port: Shanghai
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
