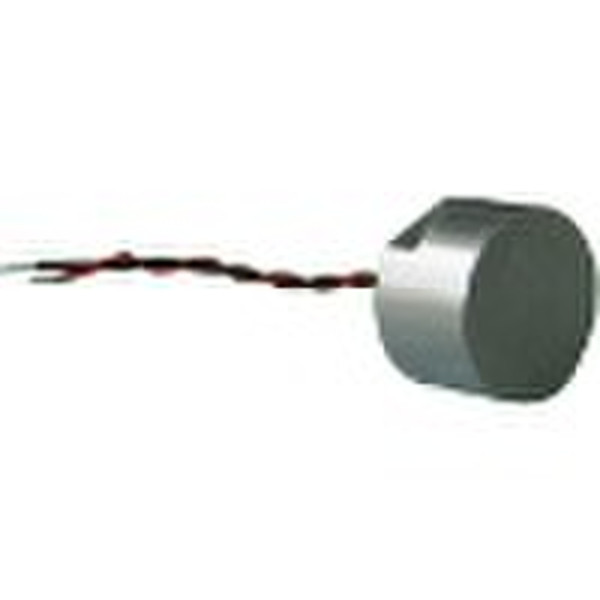

Car radar
original price: 1,00 USD
zorro zhang
Contact person
Basic Information
| Place of Origin | Sichuan China (Mainland) |
|---|---|
| Brand Name | HTW |
| Model Number | EF40RS14B1 |
| Type | Other |
I. The Ultrasonic Sensor Applications: 1.Ultrasonic distance measuring. 2.Ultrasonic transmitting and receiving for the against and natural calamities against equipments. II. Characteristics: 1.High sensitivity, high reliability, high stability 2.High and low temperature resistance, humidity resistance, shock resistance, vibration resistance, etc. III. Certificates: ISO9001:2000/TS16949/RoHS IV. Specifications: Nominal Frequency( kHz ) 40±1Capacity( pf ) 4400±20%Ring Time ( ms ) ≤1.2Sound Pressure Level( db ) 105±5Sensitivity( db ) -73±5Resistance( Ω ) 500Directivity( ° ) 110×60 Max.Input Voltage(Vp-p ) 150Operating Temp.Range( oC ) -30±80Storage Temp.( oC ) -40±85Weight( g ) 2.4
Delivery terms and packaging
Port: Shanghai
Payment term
Telegraphic transfer
-
Payment Methods
We accept:
